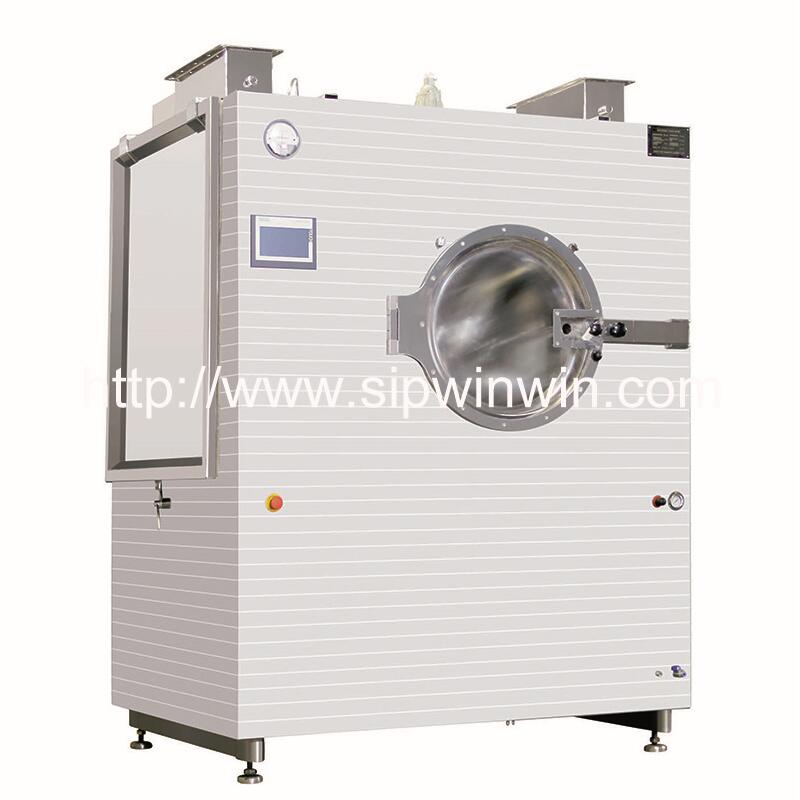

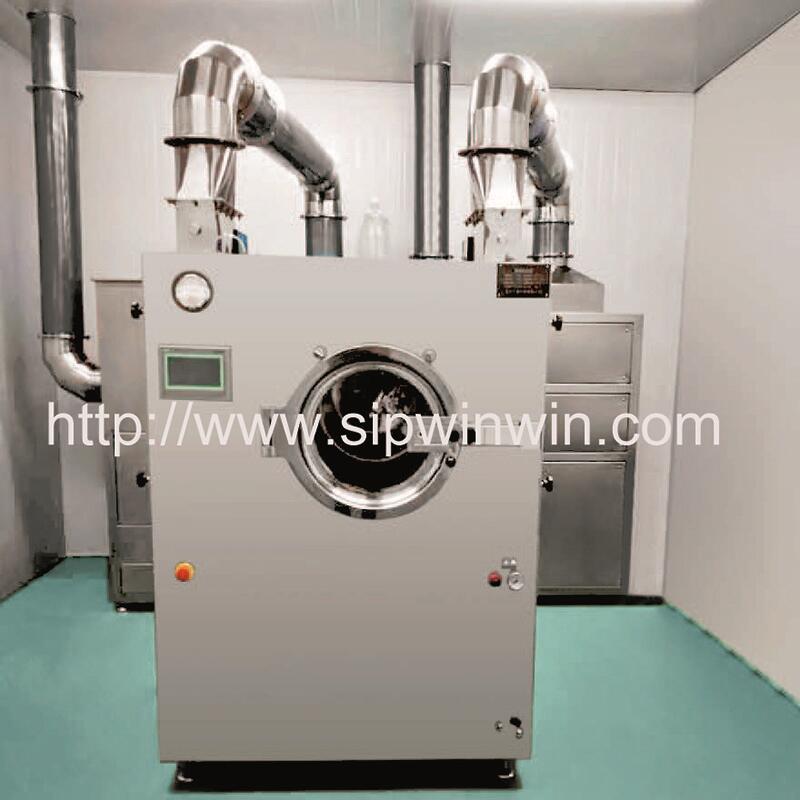

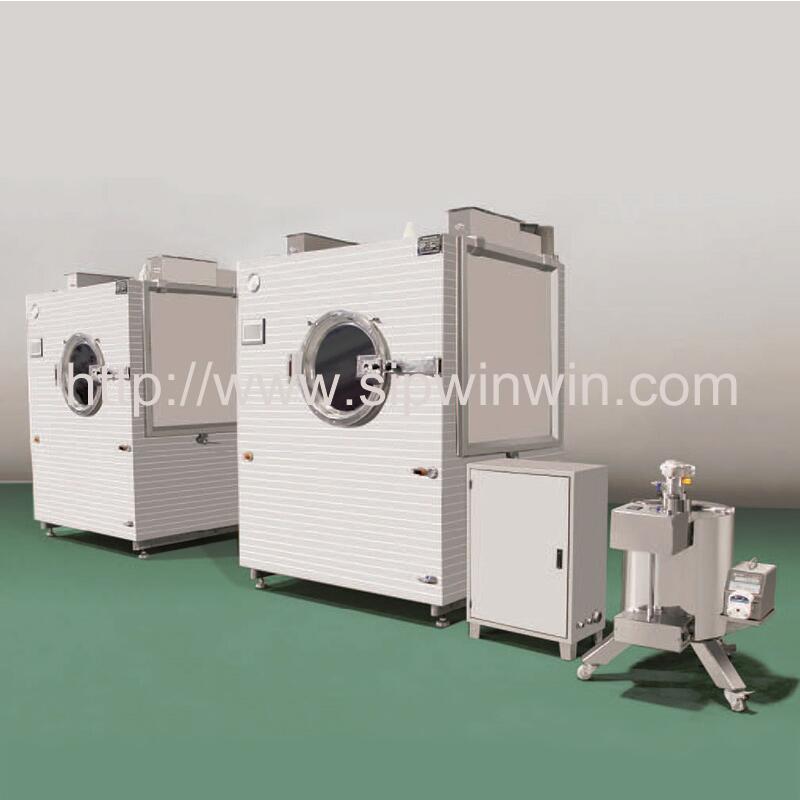

- Host machine: PLC with HMI, high-efficiency, energy saving, dust free, no cross contamination, easy to operate and clean, low noise. Film coating is dry, uniform, firm, compact and smooth.
- Hot air machine: primary filtering, middle filtering and final filtering, totally 3-stage filtering.
- Hot air reaches cleaness of 100,000 class.
- Exhausting cabinet: with shockproof and automatic dust removing device.
- Equipped with 2 pcs of spray gun from Japan Anest Iwata.
- Material: SUS304 (SS316L as option)
- PLC and HMI: Siemens brand
- Compliant with GMP requirement.
| ITEM/MODEL | BG-80X |
| Production capacity | 60-80kg/batch |
| Coating drum Rotating speed |
2-18rpm |
| Main motor power | 1.5kW |
| Hot air flow | 1250-2590 cbm/h |
| Exhausting fan air flow | 2235-3570 cbm/h |
| Exhausting motor power | 3Kw |
| Blending vessel | Ø450 x 500 |
| Dimension (host machine) | 1210x990x1900mm |
