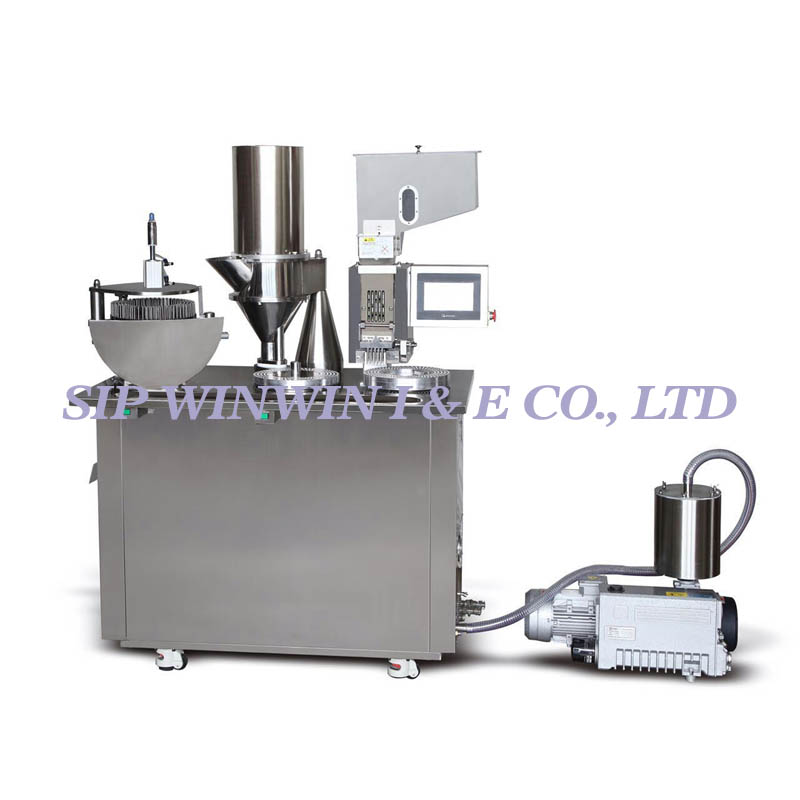

Semi-automatic capsule filling machine

Click here to watch the video clip for powder filling.

Click here to watch the video clip for pellet filling.

Click here to see the latest improvement

Advantage

• With PLC and HMI.
• Convenient for die change. It only takes 5 to 8 minutes to complete a die change.
• No capsule feeding during debugging of the machine.
• A visible window allows monitoring of the capsule transfer process. Any capsule jam can be easily found out.
• The dies are made of aviation aluminum and stainless steel 304, processed by CNC instead of bench drills. This results in improved precision and appearance.
• Inside the rack, plastic spraying is used instead of painting, providing better anti-corrosion properties. The cover is made from original stainless steel 304 plate without polishing. All measures ensures a longer machine service life.

Brief introduction

• This semi-automatic capsule filling machine is a new type of medicine packing equipment that features a novel structure and an attractive appearance. It utilizes electrical elements, pneumatic control, and incorporates an electronic automatic counting device, frequency speed control, and functions such as capsule positioning, separation, filling, and locking, which are accomplished automatically instead of manually. This reduces labor intensity, enhances filling efficiency and accuracy, and complies with pharmaceutical hygiene requirements.

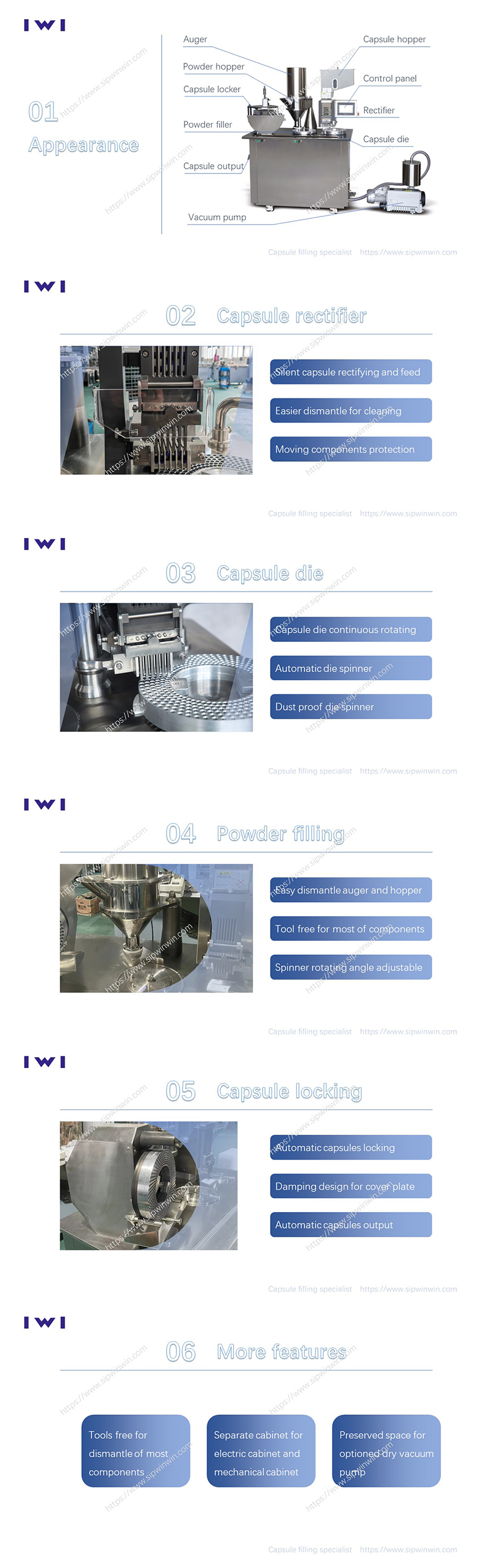

• This machine consists of five-return capsule disengaging mechanism, medicine powder filling mechanism, locking mechanism, frequency conversion speed control mechanism, pneumatic and electrical control systems, protective mechanisms, vacuum pump, air pump accessories, and more.
• It is suitable for filling various capsules domestically and internationally, achieving a finished product yield of over 97%.

Application

• This semi-automatic capsule filling machine is mainly used for filling the hollow capsule with powder, graininess medicines, chemical reagents and health care articles.

Find more on the tab page “Specification”
